Other Ways to Shut Off or Turn On Your Water
Push Button ON
Valve Access Enclosure
Push Button OFF

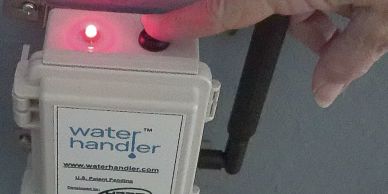

When the light on the top of the Smart Control Box is RED the valve is in the CLOSED or OFF position. By pressing the button once the valve will cycle to the OPEN or ON position in about 10 seconds.
Push Button OFF
Valve Access Enclosure
Push Button OFF

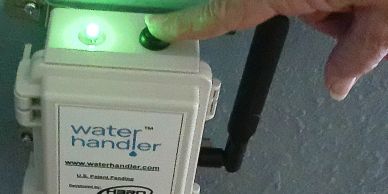

When the ight on the top of the Smart Control Box is GREEN
the valve is in the OPEN or ON position. By pressing the button once the valve will cycle to the CLOSED or OFF position in about 10 seconds.
Valve Access Enclosure
Valve Access Enclosure
Valve Access Enclosure
Installer Provided
Manual Control
CAUTION: Make certain that the power to your Smart Control Box is OFF before manually rotating the ball valve as shown.

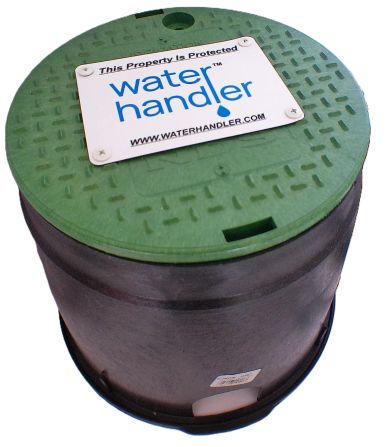

Open the Access Enclosure by removing the lid. To access the manual control loosen the RED plug then pull it straight out. Insert the provided 4 MM Allen key to manually rotate the valve.
Instructions
CAUTION: If you rotate the valve as shown and the actuator tries to correct itself the Smart Control Box is still powered ON.
